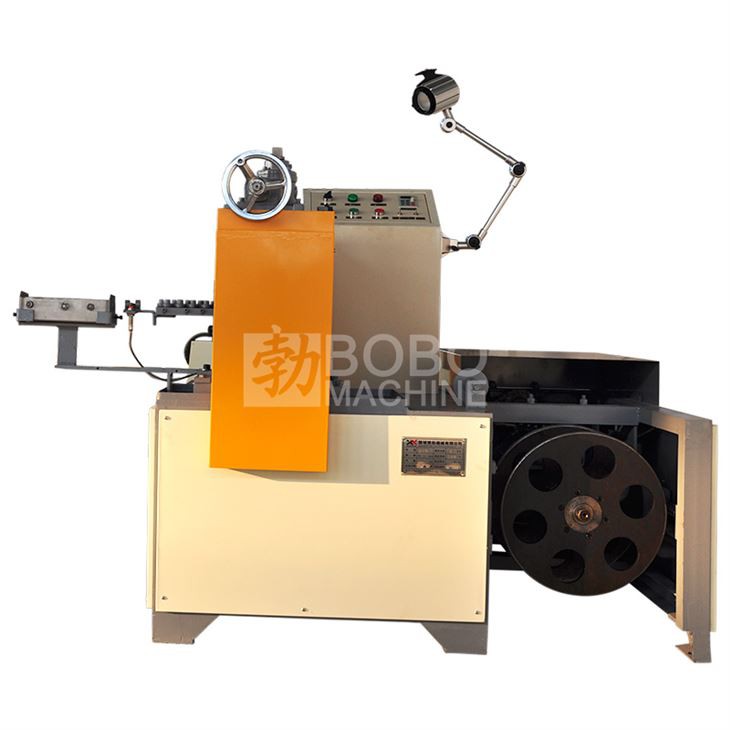

Wire Flattening Machine

Summary

The wire flattening machine is used to flat steel wire into flat shape, which is suitable for outer casing hose purpose as raw material.

BOBO Machine Feature

1-Pressing roller is made from Cr12Mov, with heat treatment HRC≥59°

2-Equipped with inverter from Mitsubishi, Japan for main motor speed adjustment.

3-Equipped with auto alarm and emergency stop function for wire feeding control

4-Equipped with straightening device for wire feeding

5-Equipped with water cooling system (Optional device).

Main Technical Data

1-Model: WF-250

2-Max. wire diameter: 2.5mm

3-Wire output speed: 1.5m/s above

4-Pressing roller diameter: 250mm

5-Wire flattening tolerance: ≤±0.01mm

6-Bobbin capacity: 110kg

7-Motor power: 5.5kw, 0-50Hz, 3Phase.

Application

This wire flattening machine can automatically and continuously press the round wires ofΦ0.5mm-Φ2.5mm into flat wire,T-shape wire and triangle wire of various specifications, making it ideal equipment applicable for the early stage production of hose making, buckle wrapping, mesh belt, circlip, spring, hairpin and other industries

After-Sale Service

We offer one-year warranty period since the date B/L for flattening machine. During warranty period, we will offer free pars of the steel wire flattening machine if quality problem, and the shipping cost by customer.

You are welcome to visit us for metal round wire flattening machine inspection and training before shipment. Also we can have online support for wire flattener installation and troubleshooting by email or video call.
