Product Description

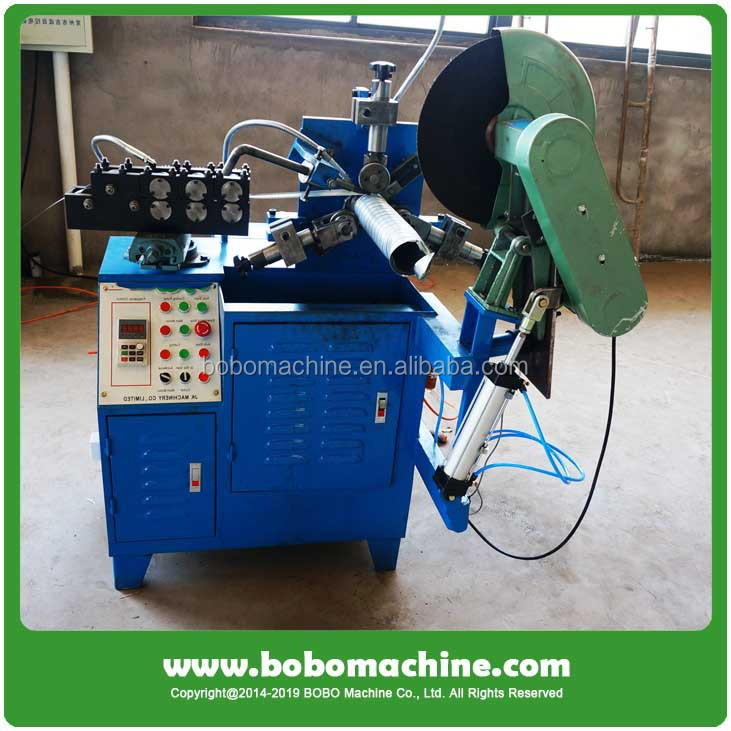

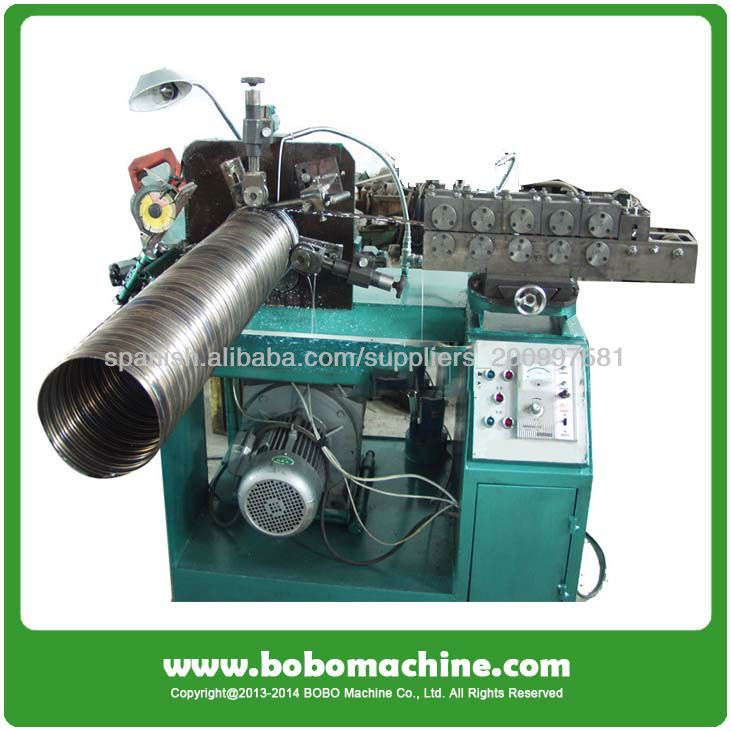

Corrugated Steel Post Tension Pipe Making Machine
The corrugated steel post tension pipe making machine are special designed for producing round & flat corrugated pipes used in expressway, airport, bridge, large-span post-tension concrete project. It is suitable for both indoor and site work. It is of high speed and better material utilization.
Specification
|
Description
|
Parameter
|
|
|
1.1
|
Model:
|
BPT-135/150
|
|
1.2
|
Diameter range:
|
35~135mm (150mm enlarged)
|
|
1.3
|
Suitable material:
|
galvanized steel strip, 0.2~0.3mm, 36mm wide
|
|
1.4
|
Pitch of spiral:
|
28mm
|
|
1.5
|
Seam type:
|
double lock seam
|
|
1.6
|
Strip feeding speed:
|
0- 13 m/min, adjustable by inverter
|
|
1.7
|
Motor:
|
380V, 3 phases, 50Hz
|
|
|
Main motor:
|
5.5kW
|
|
|
Cutting motor:
|
2.2kW
|
|
|
Lubricant motor:
|
0.125kW
|
|
1.8
|
Total weight:
|
650kg
|
|
1.9
|
Dimension:
|
1300 x 1800 x 1300mm
|
