HVAC fire resistant pre insulated pvc flexible duct making machine for air conditioning ventilation
1- Metalized PET film flexible duct machine
2- Aluminum flexible duct foming machine
3- Flexible aluminum duct forming machine
4- Flexible ventilation duct machine
5- spiral flexible duct making machine
The machine is used to produce aluminum flexible ducts with aluminum foil or metalized PET film with steel wire reinforcement
Main technical data of aluminum flexible duct machine
1.1 Diameter range: 80mm~600mm
1.2 Length of aluminum tube: 1-10m
1.3 Raw material: metalized PET film, 0.012mm, width 35-50mm
1.4 Dimension (L x W x H): 2200 x 820 x 1550mm
1.5 Weight: 500kg
1.6 Main motor power: 1.5kW
1.7 Temperaute: 40~120 centigrade
1.8 Electric heating power: 2.4kW
1.9 Working speed: 1-35 m/min, adjutable
1.10 Features of finished ducts:
Temperature resistance: -30°C-140°C
Max. air flux: 30m/s
Max. working pressure: 2500Pa
Pitch between corrugations: 20mm

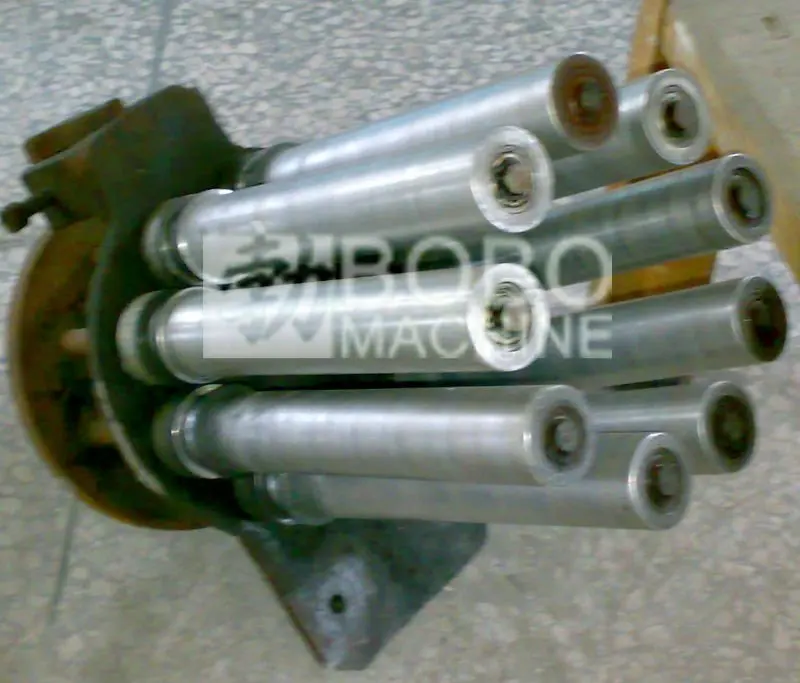

Forming mould Finished product
