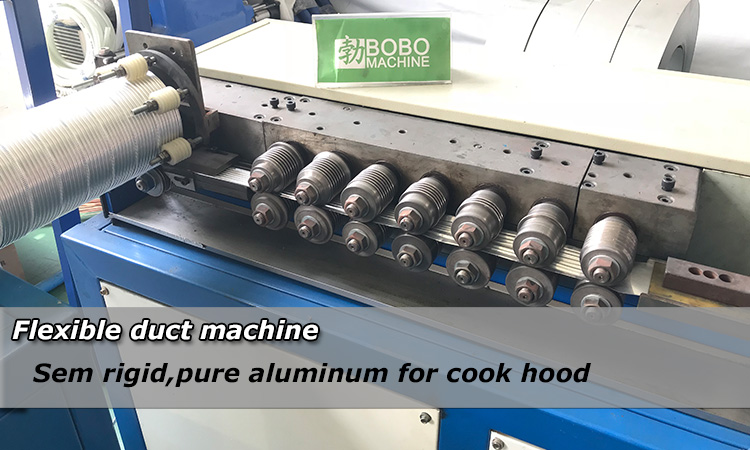

PAD-300 series Aluminum foil flexible duct machine
This PAD-300 series Aluminum foil flexible duct machine is specially for producing aluminum flexible ducts with pure aluminum foil without steel wire reinforcement for various purpose. Our advantage is our omnipotent mould which will save investment cost.
Feature
-
Automatic forming speed can be adjustable
-
Automatic online cutting device is optional
-
Pneumatic compessing system is optional
Main technical data
| 1 | Diameter range | 60-300mm |
| 2 | Duct length | 100-8000mm |
| 3 | Pure aluminum foil size |
0.05-0.15mm thick 42-55mm wide |
| 4 | Forming speed | 1-5m/min |
| 5 | Main motor power | 0.75KW |
| 6 | Dimension | 1200 x 550 x 1200 mm |
| 7 | Weight |
260KG |
