Product Description

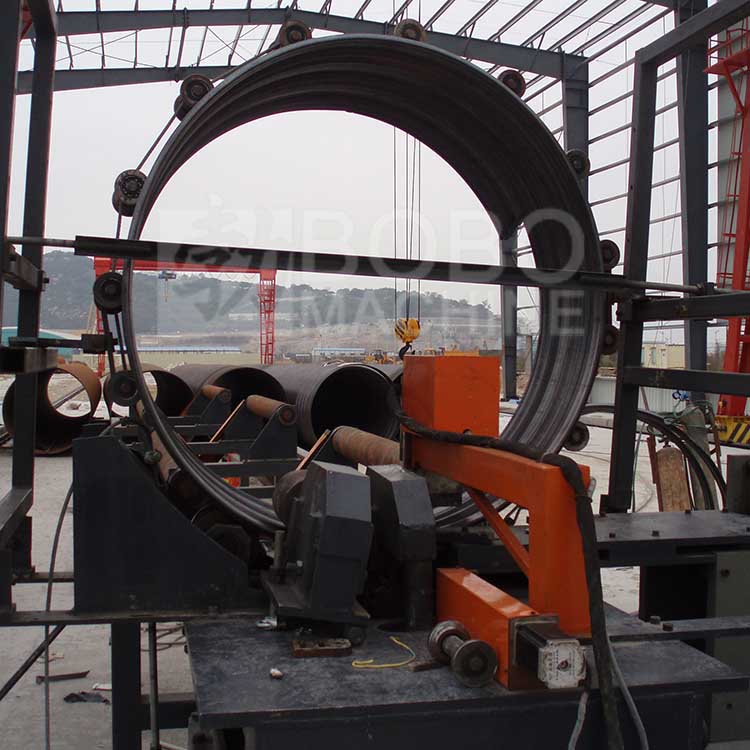

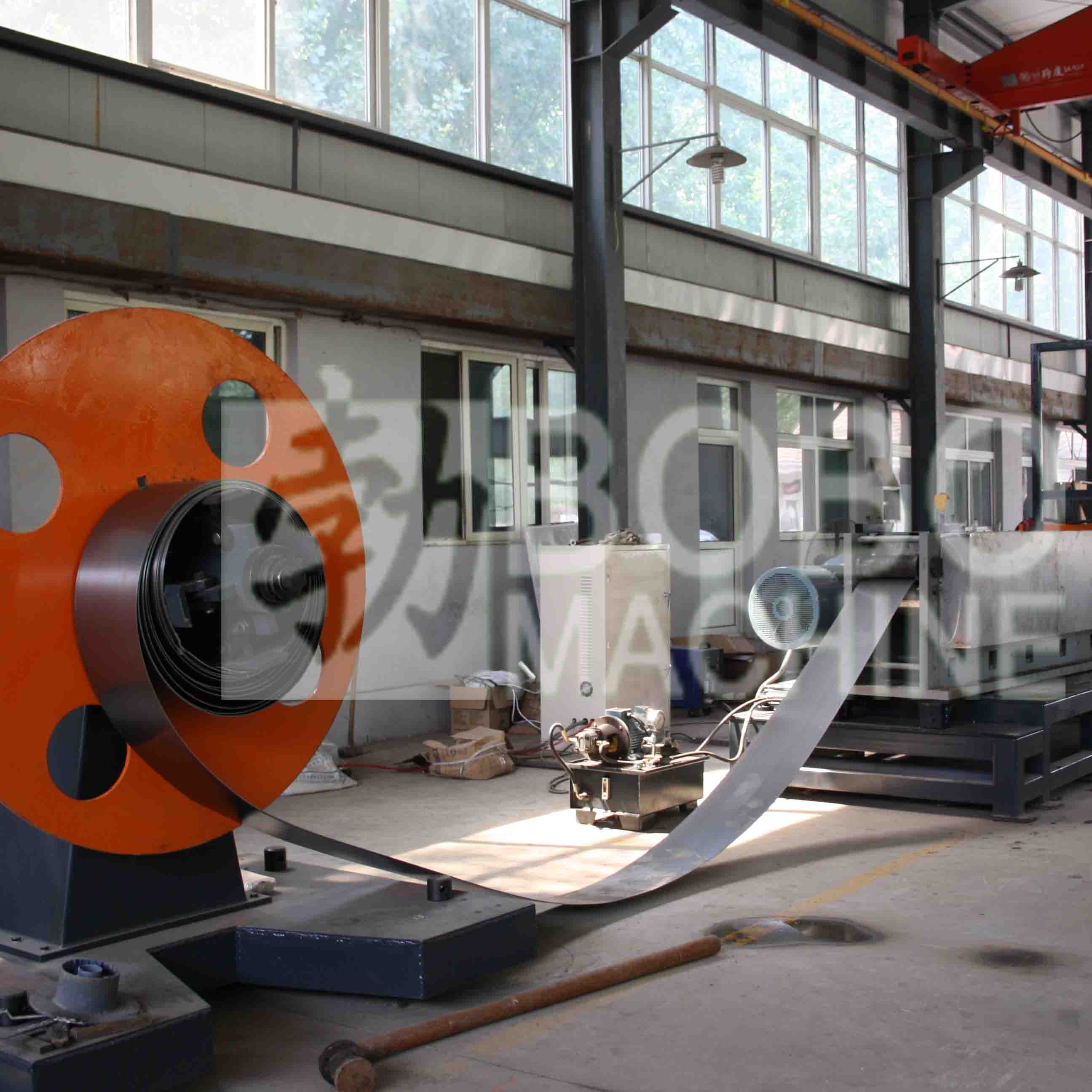

Spiral corrugated steel culvert pipe forming machine
The Spiral corrugated steel culvert pipe forming machine is widely used in highway,railway,culvert channels,bridges,temporary pavement,drainage channels and a variety of mine roadway retaining wall supporting projects.
Feature of Spiral corrugated steel culvert pipe forming machine
* Automatic forming, cutting and unloading process.
* Equipped with plasma cutting machine for smooth cutting
* PLC control system with cutting length, quantity setting
* Equipped with plasma cutting machine for smooth cutting
* PLC control system with cutting length, quantity setting
Main technical data of the Spiral corrugated steel culvert pipe forming machine
|
No.
|
Parameter
|
Data
|
|
1
|
Model
|
BPT-3600
|
|
2
|
Diameter range
|
1000-2500mm
|
|
3
|
Strip width
|
800mm
|
|
4
|
Strip thickness
|
2.0-3.0mm
|
|
5
|
Spiral pitch
|
720mm
|
|
6
|
Seam lock
|
double lock
|
|
7
|
Feeding speed
|
1-20m/min
|
|
8
|
Motor power
|
about 33 KW
|
