Product Description

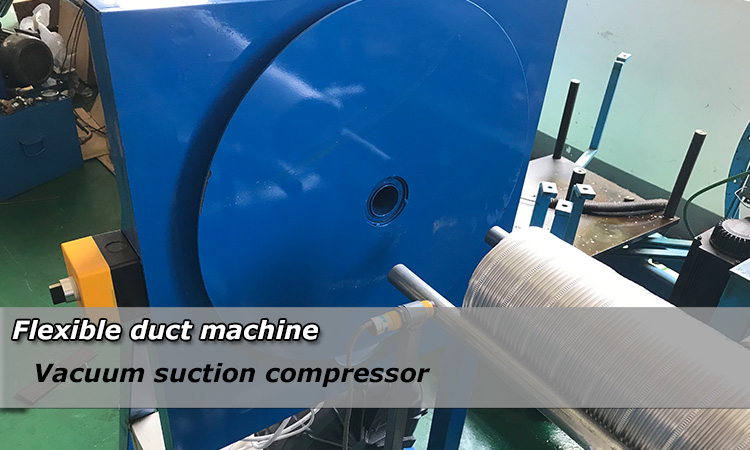

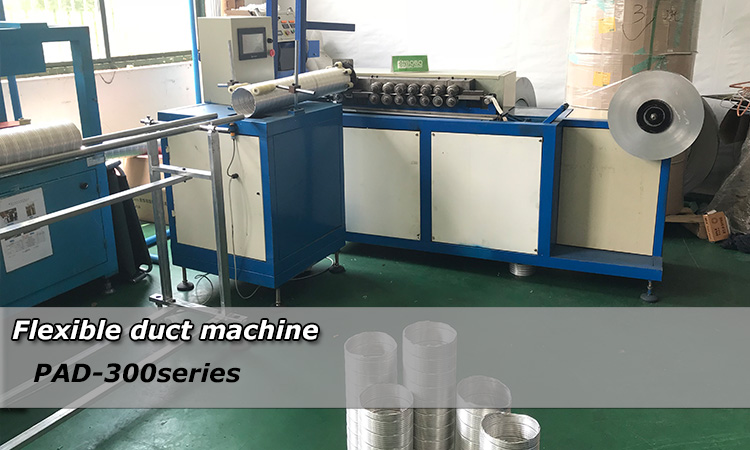

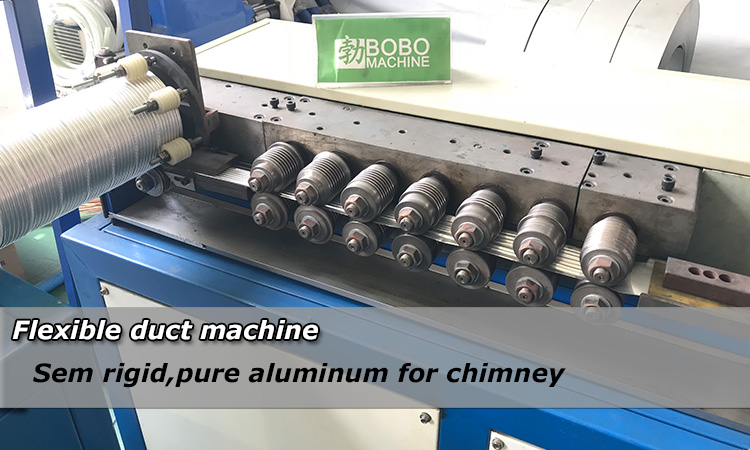

Spiral flexible aluminum duct making machine

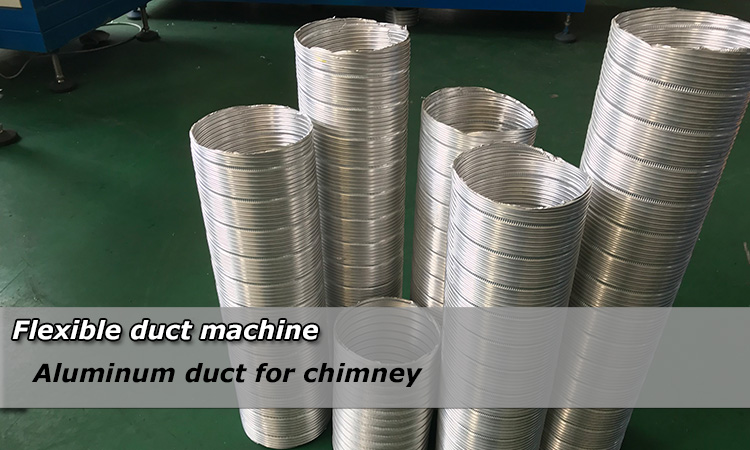

The Spiral flexible aluminum duct making machine is used to produce the flexible aluminum duct, which is widely used for chimney, exhaust pipe, etc.
Feature
* Automatic forming speed can be adjustable

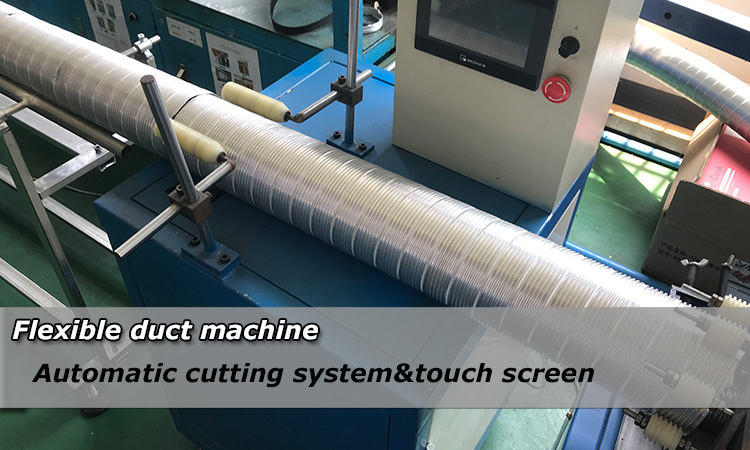

* Automatic online cutting device is optional
* Pneumatic compessing system is optional
* Automatic online cutting device is optional
* Pneumatic compessing system is optional
Main technical data
|
1
|
Diameter range
|
60-300mm
|
|
2
|
Duct length
|
100-8000mm
|
|
3
|
Pure aluminum foil size
|
0.05-0.15mm thick
42-55mm wide |
|
4
|
Forming speed
|
1-5m/min
|
|
5
|
Main motor power
|
0.75KW
|
|
6
|
Dimension
|
1200 x 550 x 1200 mm
|
|
7
|
Weight
|
260KG
|
