Corrugated Spiral Post Tension Flat Duct Making Machine Send To Uzbekistan

Nov 25, 2022Leave a message

Product Description

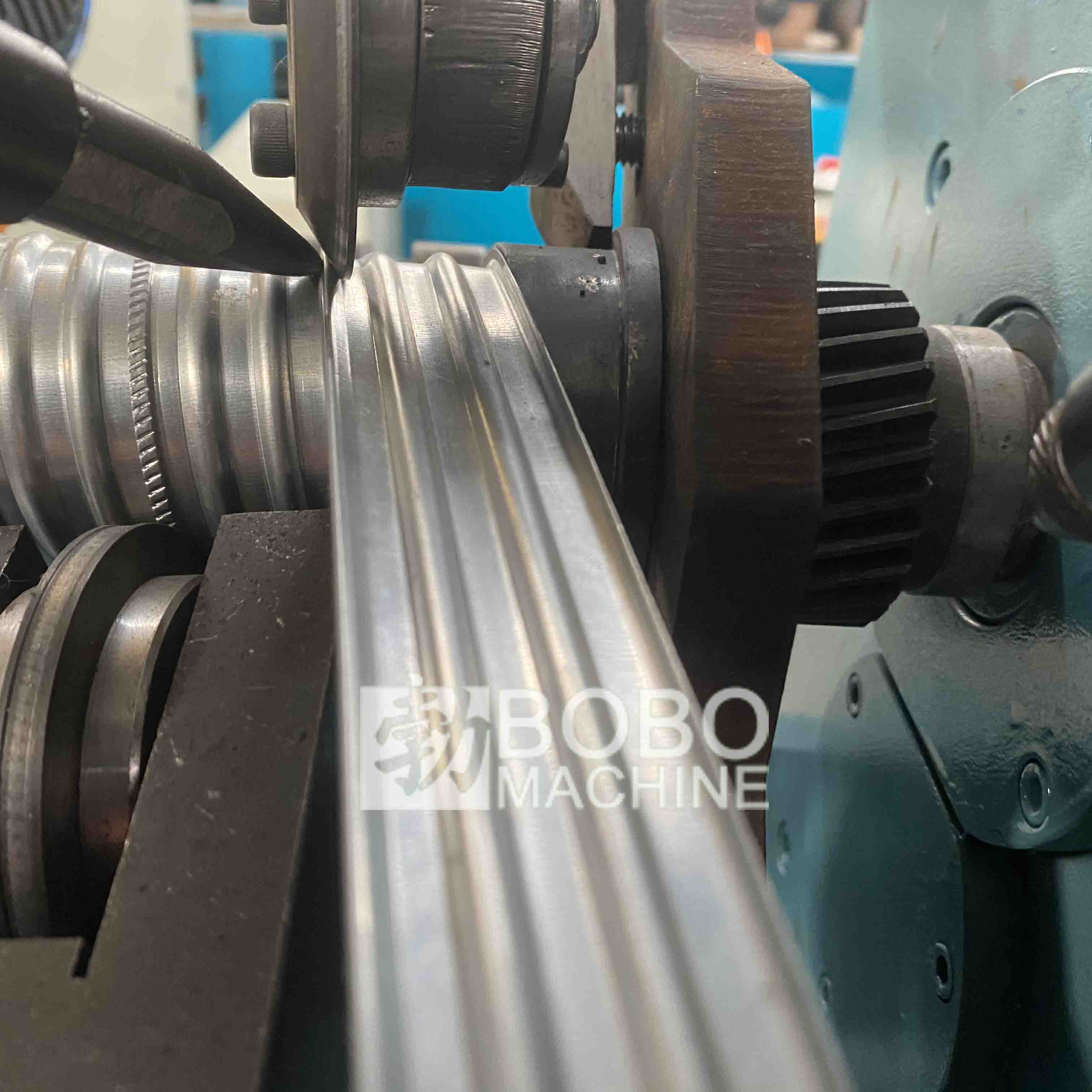

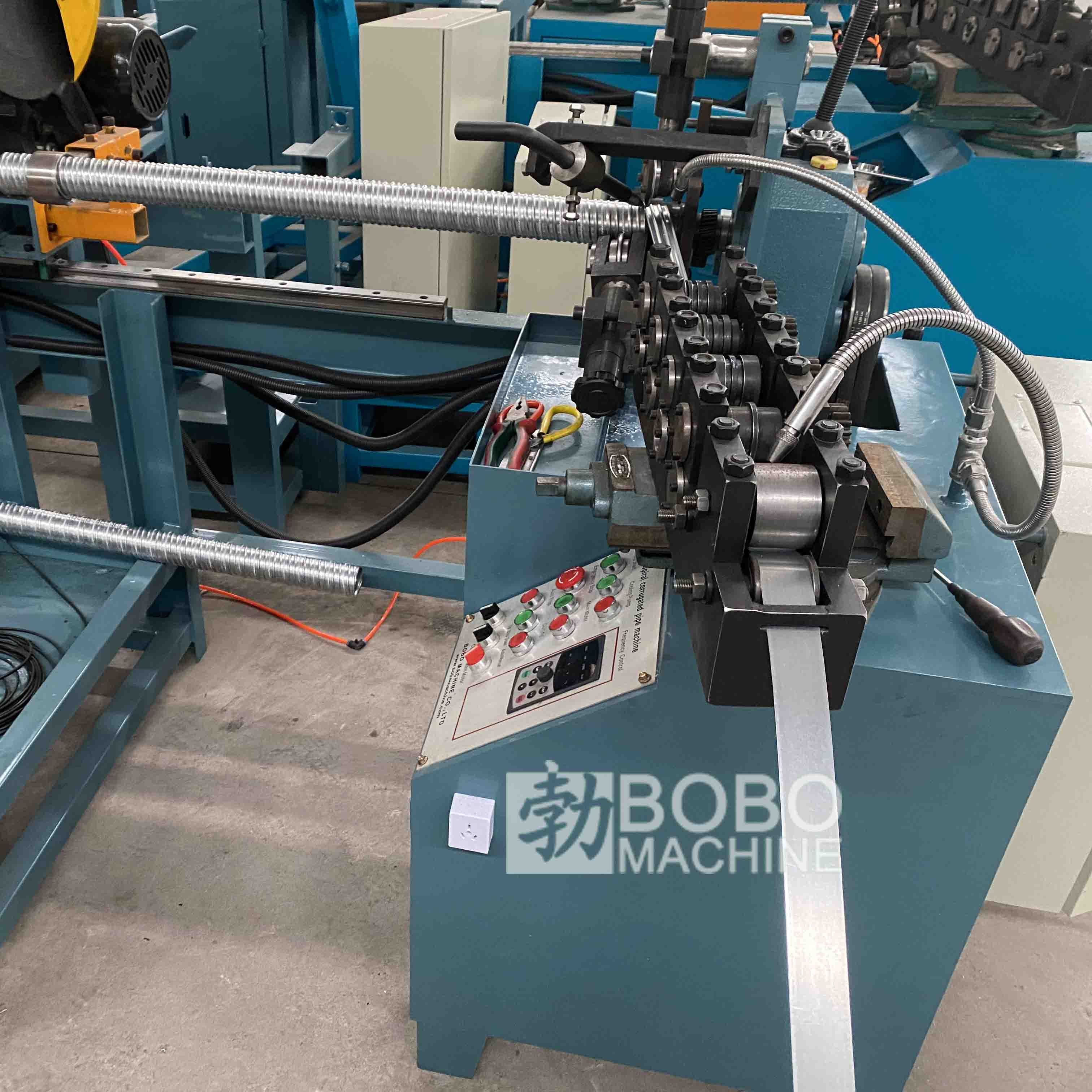

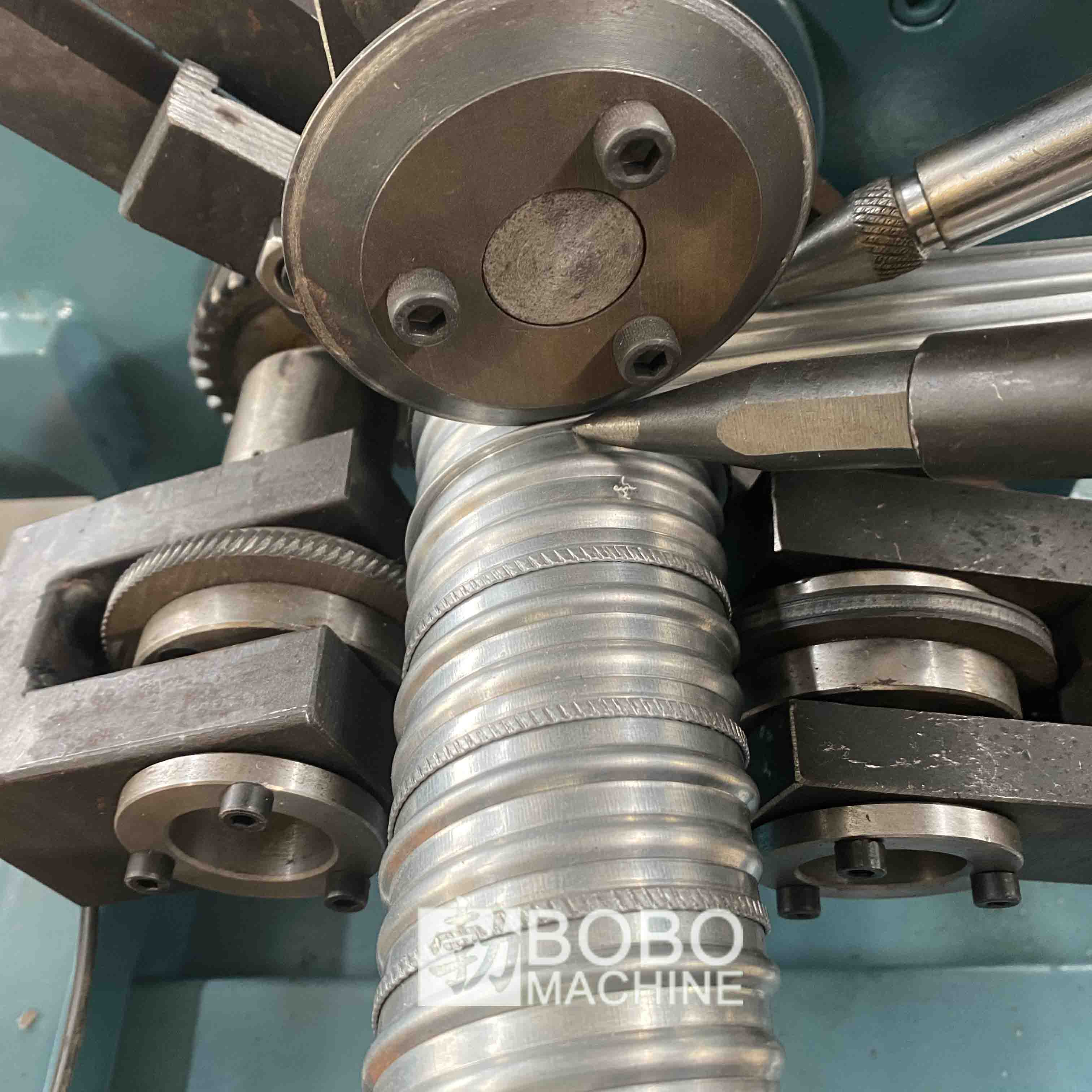

Corrugated spiral post tension duct making machine

                        Corrugated spiral post tension duct making machine

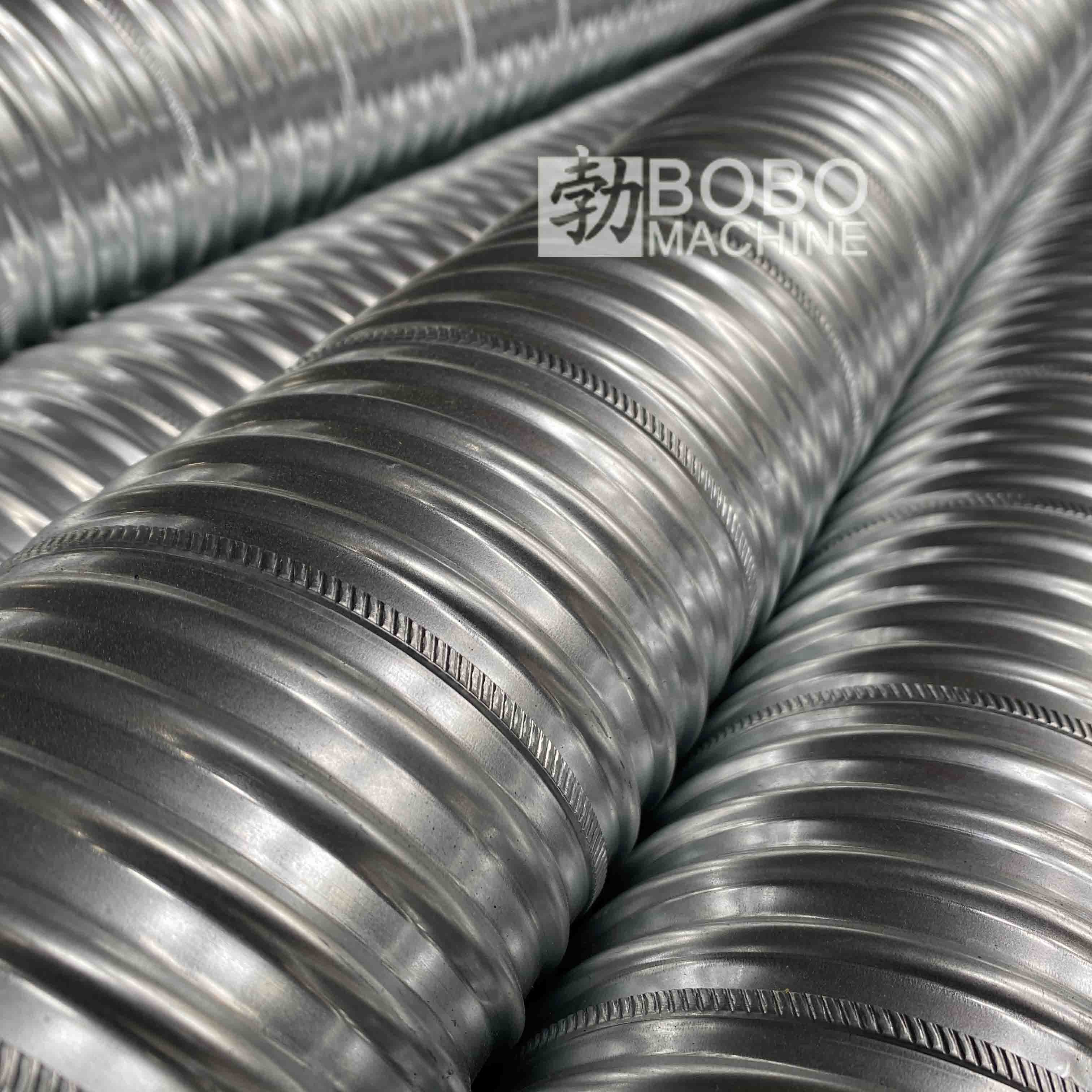

The Corrugated spiral post tensio duct making machine is used to producing round & flat corrugated pipes usedin expressway, airport, bridge, etc large-span post-tension concrete project.


                        Feature of corrugated spiral post tension duct making machine

 * Low power consumption
 * Wear well with stable performance
 * Saving material, high productivity.


                        Main technical data of corrugated spiral post tension tube machine


1	Diameter	25-300mm
2	Thickness	0.2-0.6mm
3	Strip width	36mm
4	Strip feeding speed	1-30m/min, adjustable
5	Suitable material	Galvanized steel strip
6	Main motor power	7.5KW
7	Cutting motor power	4KW
8	Lubricnt motor power	0.125KW
9	Dimension	1420x 1800 x 1400mm
10	Weight	about 600KG
