Post Tension Corrugated Duct Machine Send To The US

Dec 09, 2022Leave a message

Product Description

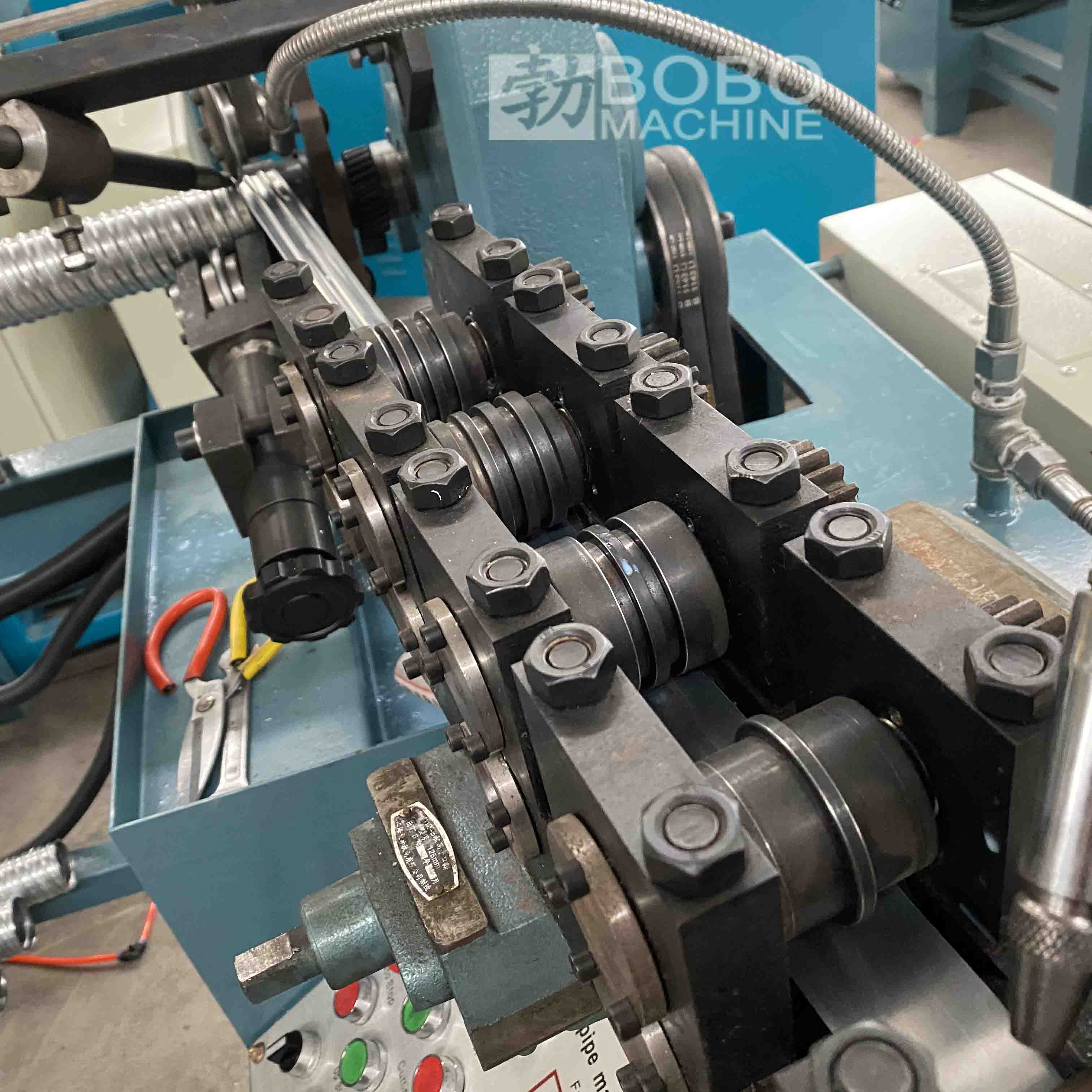

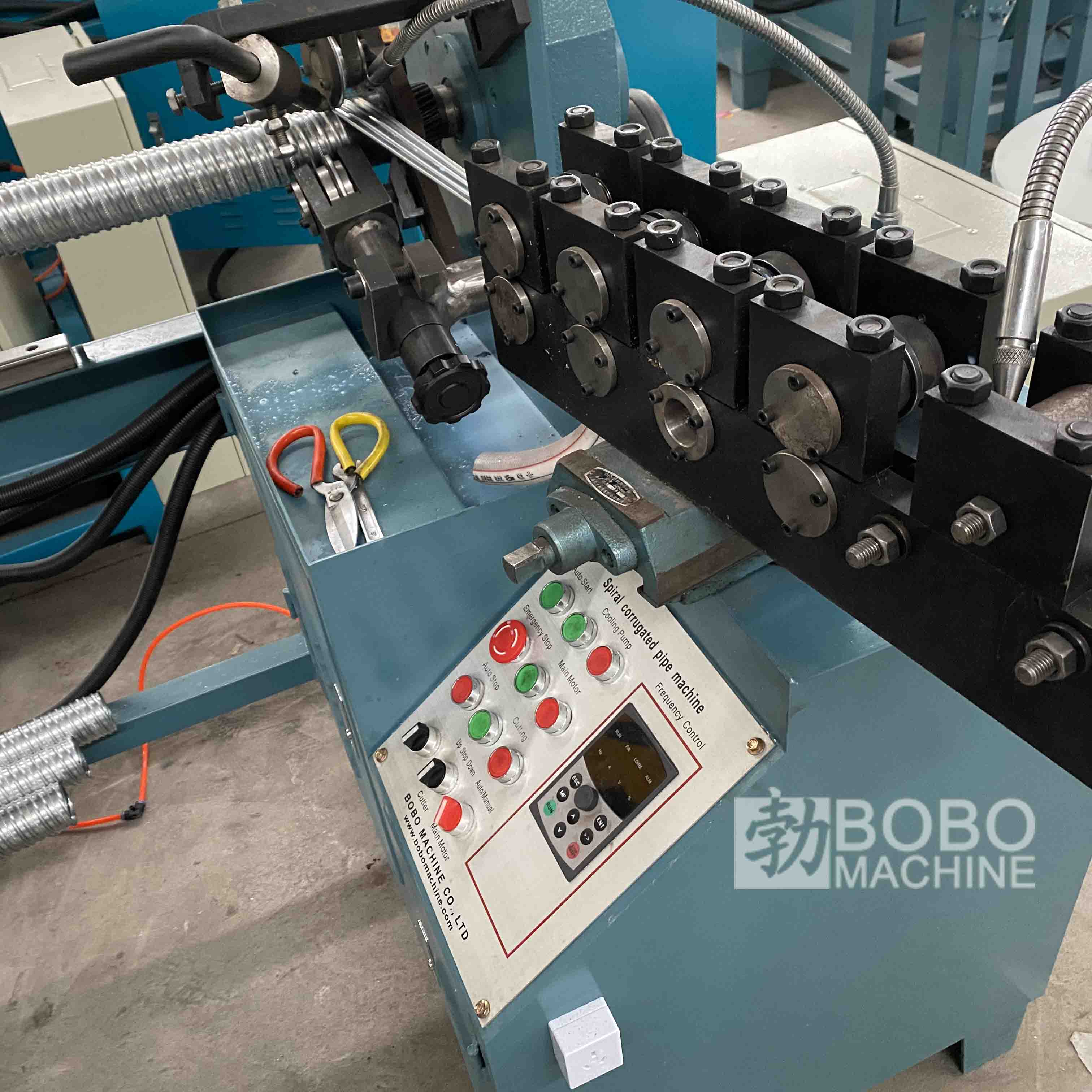

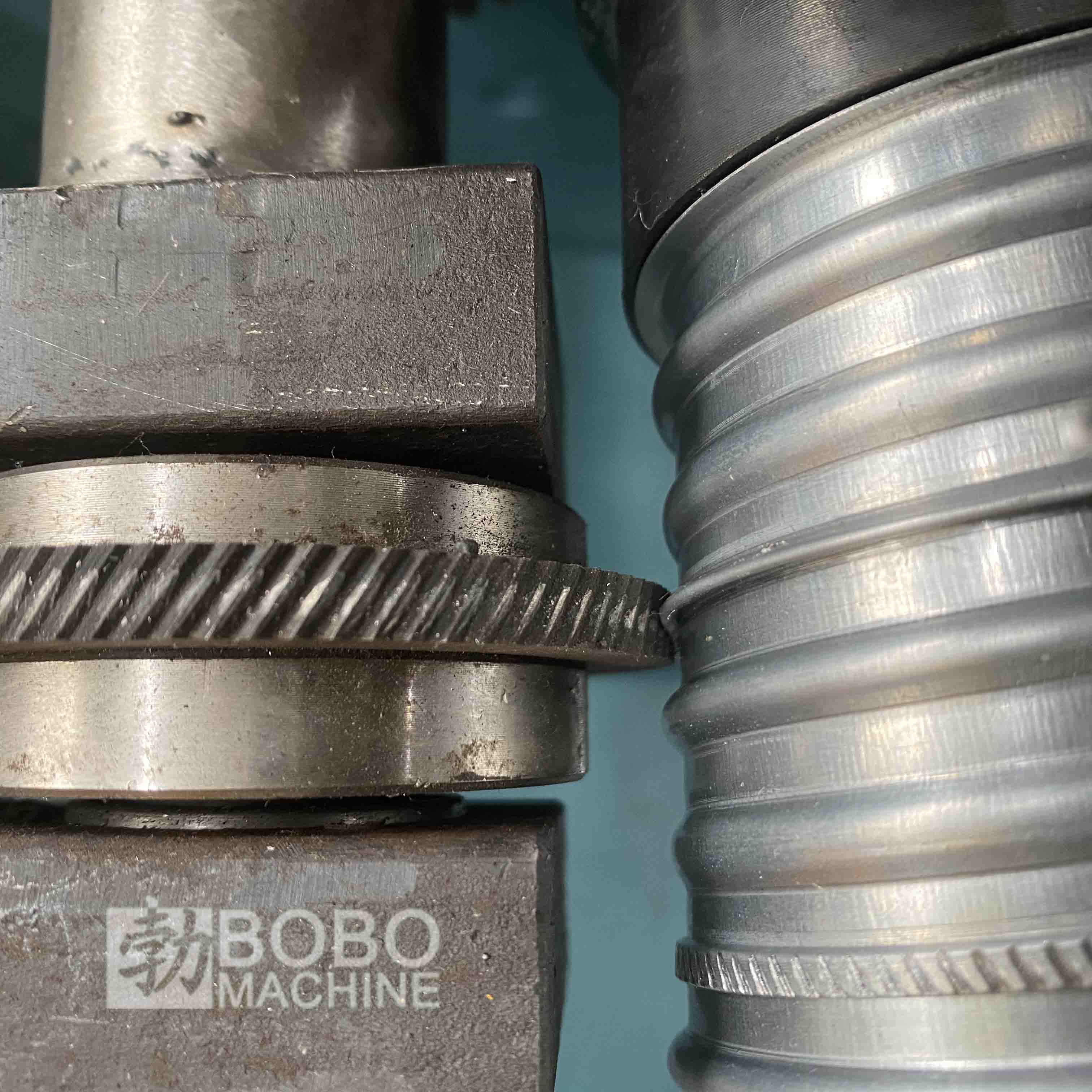

Post tension corrugated duct machine

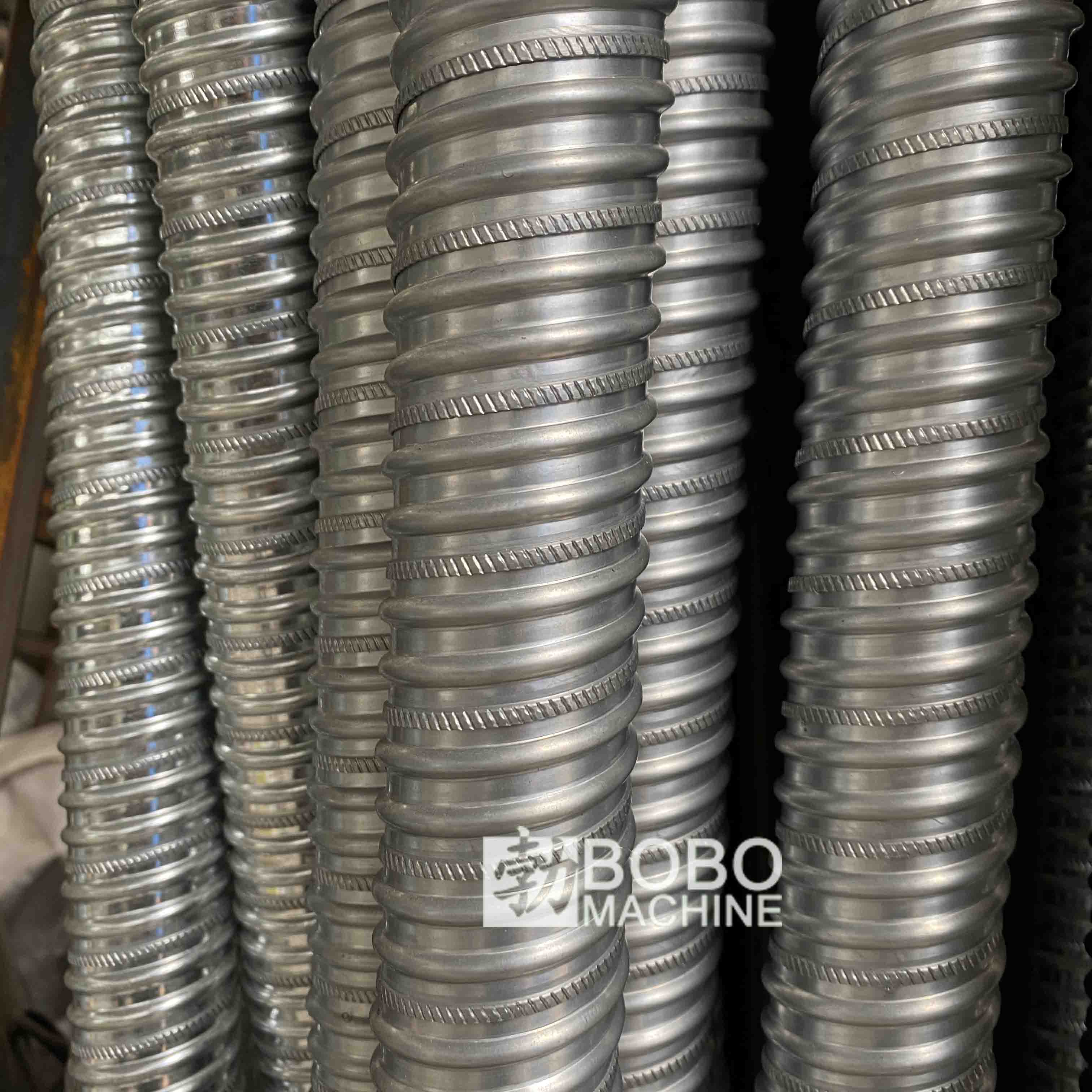

                        The post tension corrugated duct machine is used to producing round & flat corrugated pipes usedin expressway, airport, bridge, etc large-span post-tension concrete project.


Feature of post tension corrugated pipe machine

                         * Low power consumption
 * Wear well with stable performance.
 * Saving material, high productivity


                        Main technical data of Post tension corrugated pipe machine


1	Diameter	25-300mm
2	Thickness	0.2-0.6mm
3	Strip width	36mm
4	Strip feeding speed	1-30m/min, adjustable
5	Suitable material	Galvanized steel strip
6	Main motor power	7.5KW
7	Cutting motor power	4KW
8	Lubricnt motor power	0.125KW
9	Dimension	1430x 1800 x 1430mm
10	Weight	about 600KG
